Portable Compactors
SPB skip type portable
compactor (model E)

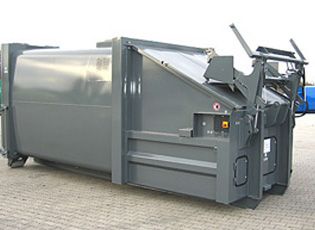

Skip Type Portable Compactors with Pendulum Ram
Portable Compactor for Use
with Rolonof Vehicles (Model E)
Hook Type Portable Compactors with Pendulum Ram

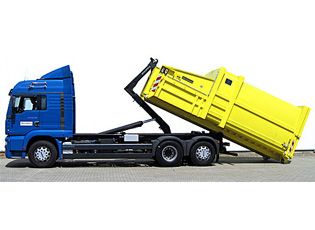

Portable Compactor for Use with Rolonof Vehicles (Model E)
These days every company needs, for economical and environmental reasons, a well-considered conception for waste sorting, collection and disposal. A reliable and economically working machine technology belongs to such a total conception. We therefore recommend the use of our new portable compactors of the model E generation with their numerous advantages.
Due to the innovative container construction without sections in connection with the well-considered and proven compactor technology a high compaction degree and consequently a higher filling density are ensured. The frequency of transport and, as a result, the costs for transport can be considerably reduced. The special form improves clearly the discharge. Furthermore the smooth container walls can be used as a big advertising space.
The machines are easy to maintain, extremely sturdy and very reliable. They convince due to their well-planned, robust construction and a long service life.

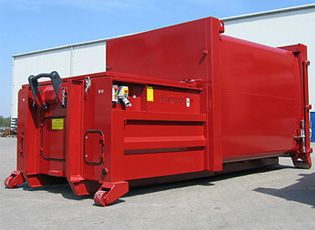

SPB_20_SEN_E_1
Technical Specification for Portable Compactor SPB 20 SEN-E |
||||
Model
|
Capacity (m³)
|
Length (mm)
|
Width (mm) |
Height (mm) |
SPB 16 SEN - E |
16 |
5.560 |
2.550 |
2.580 |
SPB 18 SEN - E |
18 |
5.960 |
2.550 |
2.580 |
SPB 20 SEN - E |
20 |
6.360 |
2.550 |
2.580 |
| SPB 22 SEN - E | 22 |
6.760 |
2.550 |
2.580 |
| SPB 24 SEN - E | 24 |
7.230 |
2.550 |
2.580 |
| Power | 5.5 kW |
Compaction force |
340 kN |
Volume per stroke |
1.14 cbm |
Volume per hour |
theor. 95 cbm |
Time per working cycle |
43 s |
Ram penetration |
420 mm |
Filling opening bottom |
960 x 1.860 mm |
Filling opening top |
1.470 x 1.860 mm |
Filling height |
1.440 mm |
Technical Specification for Portable Compactor SPB 20 SEL-E |
||||
Model
|
Capacity (m³)
|
Length (mm)
|
Width (mm) |
Height (mm) |
SPB 16 SEL - E |
16 |
5.960 |
2.550 |
2.580 |
SPB 18 SEL - E |
18 |
6.360 |
2.550 |
2.580 |
SPB 20 SEL - E |
20 |
6.760 |
2.550 |
2.580 |
| SPB 22 SEL - E | 22 |
7.160 |
2.550 |
2.580 |
| SPB 24 SEL - E | 24 |
7.630 |
2.550 |
2.580 |
| Power | 5.5 kW |
Compaction force |
340 kN |
Volume per stroke |
1.7 cbm |
Volume per hour |
theor. 104 cbm |
Time per working cycle |
59 s |
Ram penetration |
420 mm |
Filling opening bottom |
1.500 x 1.860 mm |
Filling opening top |
1.860 x 1.860 mm |
Filling height |
1.520 mm |
Quality Features of the Portable Compactors, E-Generation
- Easy feeding and trouble-free discharge due to the smooth conical container construction (on 3 sides) without sections
- High filling weight due to circulation of the waste at the curvatures of the container door
- Galvanized ratchet closing mechanism
- Robust safety bar in order to keep the door open while discharging
- Compactor floor made of high wear close-grained construction steel
- 3 removable inspection hatches at the in case of repair or service works
- Adjustable ram, guided in polyamide
- Reinforced sliding plates with milled scraping edge
- Easy feeding due to low filling height
- Crashing protection over the control switches
- Standard design with timer, oil and
temperature control as well as motor protection - Low noise level hydraulic pump
- Wide range of accessories on request compaction body for good accessibility
